21033962531 | Harting
Panel socket, M12, 5 pole, solder connection, screw locking, straight, 21033962531
Order No.: 42P1993
EAN: 5713140228535
MPN:
21033962531
21 03 396 2531
Series: Circular connectors M12
Unit Price (€ / pc.)
21.8722 € *
Standard delivery time from the manufacturer is: On Request

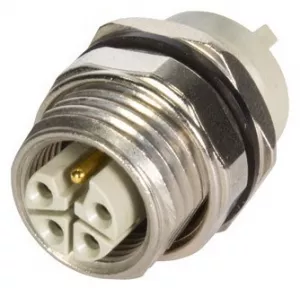

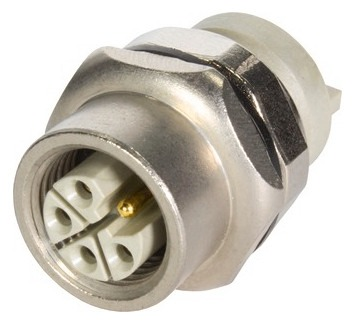

Panel socket, 21033962531, Harting
Panel socket with reflow soldering termination, straight, for front mounting, 5 contacts, L-coding.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Coding | L | |
| Orientation | straight | |
| Contact connection | solder connection | |
| Pin number | 5 pole | |
| Product type | panel socket | |
| Degree of protection (IP) | IP65/IP67 | |
| contact surface | gold-plated | |
| Type of locking | screw locking | |
| Assembly | front mounting | |
| Thread size | M12 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | RO |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
