21033752400 | Harting

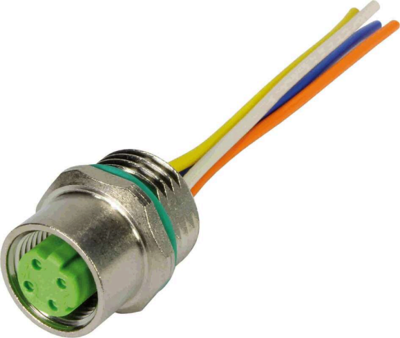

Panel socket, M12, 4 pole, screw locking, straight, 21033752400
Order No.: 42F9225
EAN: 5713140138087
MPN:
21033752400
21 03 375 2400
Series: Circular connectors M12
Unit Price (€ / pc.)
12.6021 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
12.60 € *
Price list
Quantity
Price per unit*
1 pcs.
12.6021 €
10 pcs.
11.8048 €
25 pcs.
11.4478 €
50 pcs.
10.6505 €
*incl. VAT plus shipping costs
Subject to prior sale
Sensor actuator connector, 21033752400, Harting
Panel feed through with conductors, for rear mounting, 50 cm.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | panel socket | |
| Version | cable 0.5 m | |
| Pin number | 4 pole | |
| Thread size | M12 | |
| Coding | D | |
| Type of locking | screw locking | |
| Orientation | straight | |
| contact surface | nickel-plated/gold-plated | |
| Additional parts | equipped | |
| Assembly | front mounting | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444290 |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
