21033712403 | Harting

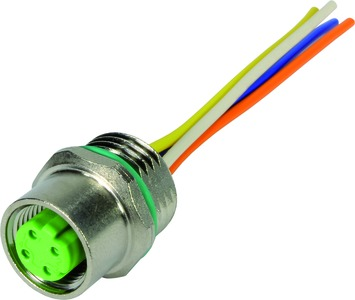

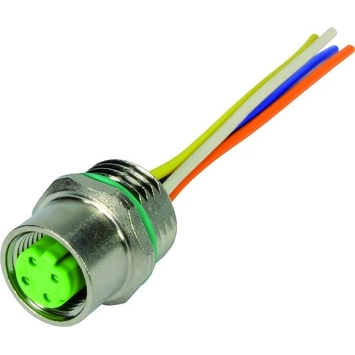

Panel socket, M12, 4 pole, screw locking, straight, 21033712403
Order No.: 45F975
EAN: 4099891104856
MPN:
21033712403
21 03 371 2403
Series: Circular connectors M12
Unit Price (€ / pc.)
28.5481 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
28.55 € *
Price list
Quantity
Price per unit*
1 pcs.
28.5481 €
10 pcs.
25.1209 €
50 pcs.
23.4192 €
100 pcs.
22.5505 €
250 pcs.
21.6937 €
*incl. VAT plus shipping costs
Subject to prior sale
Panel feed-through, with strands
Panel feed-through, with strands
The technical features of 21033712403 rom Harting at a glance
- Product Type Designation Panel feed-through M12 D code Socket / M16
- Designation Panel feed-through M12 D code Socket / M16
Technical specifications
| Filter | Property | Value |
|---|---|---|
| contact surface | nickel-plated/gold-plated | |
| Thread size | M12 | |
| Orientation | straight | |
| Product type | panel socket | |
| Coding | D | |
| Assembly | front mounting | |
| Type of locking | screw locking | |
| Pin number | 4 pole | |
| Degree of protection (IP) | IP67 | |
| Additional parts | equipped | |
| Version | cable 0.5 m |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85389099 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
