21033711403 | Harting

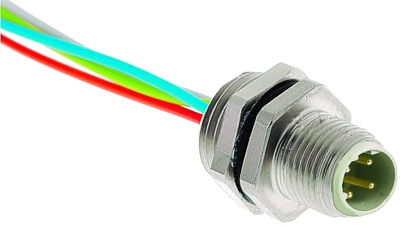

Panel plug, M12, 4 pole, screw locking, straight, 21033711403
Order No.: 45F971
EAN: 4099891104832
MPN:
21033711403
21 03 371 1403
Series: Circular connectors M12
Unit Price (€ / pc.)
19.8016 € *
Standard delivery time from the manufacturer is: 8 Weeks
Total Price:
19.80 € *
Price list
Quantity
Price per unit*
1 pcs.
19.8016 €
10 pcs.
18.5640 €
25 pcs.
18.0047 €
50 pcs.
16.7314 €
*incl. VAT plus shipping costs
Subject to prior sale
Panel feed-through, with strands
Panel feed-through, with strands
The technical features of 21033711403 rom Harting at a glance
- Product Type Designation Panel feed-through M12 D code Pin / M16
- Designation Panel feed-through M12 D code Pin / M16
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | panel plug | |
| Version | cable 0.5 m | |
| Pin number | 4 pole | |
| Thread size | M12 | |
| Coding | D | |
| Type of locking | screw locking | |
| Orientation | straight | |
| contact surface | nickel-plated/gold-plated | |
| Additional parts | equipped | |
| Assembly | front mounting | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389099 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
