21033292801 | Harting

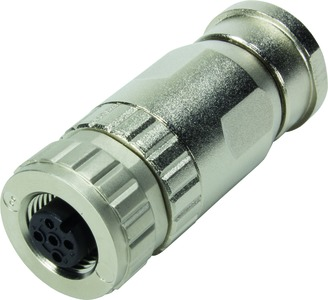

Jack, M12, 8 pole, screw connection, screw locking, straight, 21033292801
Order No.: 45F953
EAN: 4099889691498
MPN:
21033292801
21 03 329 2801
Series: Circular connectors M12
Unit Price (€ / pc.)
42.8043 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
42.80 € *
Price list
Quantity
Price per unit*
1 pcs.
42.8043 €
10 pcs.
37.6754 €
50 pcs.
35.0931 €
100 pcs.
34.0697 €
*incl. VAT plus shipping costs
Subject to prior sale
Sensor-actuator connector, 09151000601, HARTING
Features
- Screw lock
- Degree of protection: IP67
- Made of: Copper-Zinc alloy
- RoHs-compatible
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | screw connection | |
| contact surface | gold-plated | |
| Thread size | M12 | |
| Orientation | straight | |
| Product type | jack | |
| Coding | A | |
| Assembly | cable assembly | |
| Type of locking | screw locking | |
| Pin number | 8 pole | |
| Degree of protection (IP) | IP65/IP67 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
