21033212536 | Harting

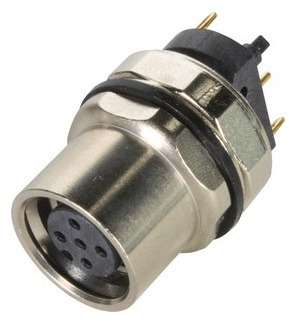

Panel socket, M12, 4 pole, solder connection, screw lock/push-pull, straight, 21033212536
Order No.: 42P1921
EAN: 5713140228092
MPN:
21033212536
21 03 321 2536
Series: Circular connectors M12
Unit Price (€ / pc.)
22.7647 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
22.76 € *
Price list
Quantity
Price per unit*
1 pcs.
22.7647 €
5 pcs.
21.7413 €
10 pcs.
21.0987 €
25 pcs.
19.6469 €
*incl. VAT plus shipping costs
Subject to prior sale
Panel socket, 21033212536, Harting
Panel socket with reflow soldering termination, straight, for front mounting, 4 contacts, A-coding.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | panel socket | |
| Pin number | 4 pole | |
| Thread size | M12 | |
| Coding | A | |
| Type of locking | screw lock/push-pull | |
| Orientation | straight | |
| Contact connection | solder connection | |
| contact surface | gold-plated | |
| Assembly | front mounting | |
| Degree of protection (IP) | IP65/IP67 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
