21033176510 | Harting

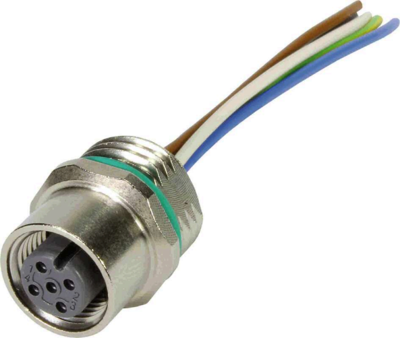

Panel socket, M12, 5 pole, screw locking, straight, 21033176510
Order No.: 42F9223
EAN: 5713140227484
MPN:
21033176510
21 03 317 6510
Series: Circular connectors M12
Unit Price (€ / pc.)
11.6025 € *
Standard delivery time from the manufacturer is: On Request
Sensor actuator connector, 21033176510, Harting
Panel feed through with conductors, for rear mounting, 100 cm.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| contact surface | nickel-plated/gold-plated | |
| Assembly | front mounting | |
| Coding | A | |
| Additional parts | equipped | |
| Thread size | M12 | |
| Orientation | straight | |
| Degree of protection (IP) | IP67 | |
| Product type | panel socket | |
| Pin number | 5 pole | |
| Version | cable 1 m | |
| Type of locking | screw locking |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444290 |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
