21033112501 | Harting

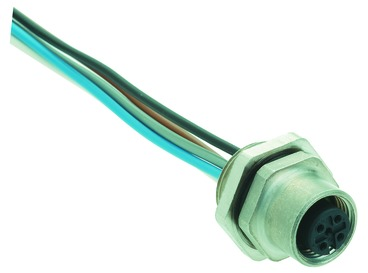

Panel socket, M12, 5 pole, screw locking, straight, 21033112501
Order No.: 45F878
EAN: 4099891104771
MPN:
21033112501
21 03 311 2501
Series: Circular connectors M12
Unit Price (€ / pc.)
45.4699 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
45.47 € *
Price list
Quantity
Price per unit*
1 pcs.
45.4699 €
10 pcs.
40.0197 €
50 pcs.
37.2946 €
100 pcs.
36.1998 €
250 pcs.
34.8432 €
*incl. VAT plus shipping costs
Subject to prior sale
Panel feed-through, with strands
Panel feed-through, with strands
The technical features of 21033112501 rom Harting at a glance
- Product Type Designation Panel feed-through M12-F A-code 500mm
- Designation Panel feed-through M12-F A-code 500mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | cable 0.5 m | |
| contact surface | nickel-plated/gold-plated | |
| Coding | A | |
| Product type | panel socket | |
| Type of locking | screw locking | |
| Additional parts | equipped | |
| Assembly | front mounting | |
| Thread size | M12 | |
| Orientation | straight | |
| Degree of protection (IP) | IP67 | |
| Pin number | 5 pole |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
