21033092505407 | Harting
Panel socket, M12, 5 pole, solder connection, screw lock/push-pull, straight, 21033092505407
Order No.: 42P2268
EAN: 5713140228368
MPN:
21033092505407
21 03 309 2505 407
Series: Circular connectors M12
Unit Price (€ / pc.)
14.399 € *
Standard delivery time from the manufacturer is: On Request

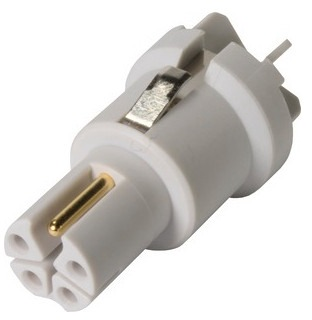

Panel socket, 21033092505407, Harting
Panel socket with reflow soldering termination, straight, 5 contacts, K-coding.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | solder connection | |
| contact surface | gold-plated | |
| Thread size | M12 | |
| Orientation | straight | |
| Product type | panel socket | |
| Coding | K | |
| Assembly | through hole | |
| Type of locking | screw lock/push-pull | |
| Pin number | 5 pole | |
| Degree of protection (IP) | IP65/IP67 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | RO |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
