21033091430 | Harting

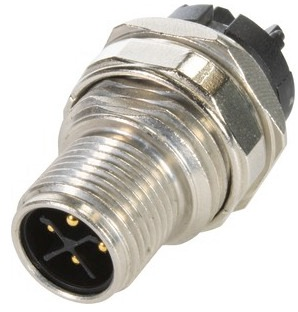

Panel plug, M12, 4 pole, solder connection, screw lock/push-pull, straight, 21033091430
Order No.: 42P1877
EAN: 5713140228580
MPN:
21033091430
21 03 309 1430
Series: Circular connectors M12
Unit Price (€ / pc.)
19.6112 € *
Standard delivery time from the manufacturer is: On Request
Panel plug, 21033091430, Harting
Panel plug with reflow soldering termination, straight, for rear mounting, 4 contacts, S-coding.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Coding | S | |
| Orientation | straight | |
| Contact connection | solder connection | |
| Pin number | 4 pole | |
| Product type | panel plug | |
| Degree of protection (IP) | IP65/IP67 | |
| contact surface | gold-plated | |
| Type of locking | screw lock/push-pull | |
| Assembly | rear mounting | |
| Thread size | M12 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | RO |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
