21032821405 | Harting

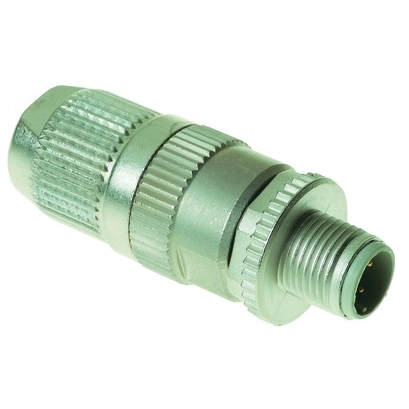

Plug, M12, 4 pole, IDC connection, screw locking, straight, 21032821405
 Order No.: 45F847
  EAN: 4099889691139
  MPN:
  21032821405
  21 03 282 1405
  Series: Circular connectors M12
 Unit Price (€ / pc.)
   47.6714 €  *
   Standard delivery time from the manufacturer is: 4 Weeks
 Total Price:
  47.67 € *
  Price list
 Quantity
 Price per unit*
 1 pcs.
 47.6714 €
 10 pcs.
 41.9475 €
 50 pcs.
 39.0915 €
 100 pcs.
 37.9372 €
 250 pcs.
 36.5092 €
  *incl. VAT plus shipping costs
  Subject to prior sale
 Sensor-actuator connector, 09156000301, HARTING
Features
- Screw lock
- Degree of protection: IP67
- Made of: Copper-Zinc alloy
- RoHs-compatible
 Technical specifications

 | Filter | Property | Value |
|---|---|---|
| Contact connection | IDC connection | |
| contact surface | gold-plated | |
| Assembly | cable assembly | |
| Coding | D | |
| Thread size | M12 | |
| Orientation | straight | |
| Degree of protection (IP) | IP65/IP67 | |
| Product type | plug | |
| Pin number | 4 pole | |
| Type of locking | screw locking |
 Download
  Logistics

 | Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
 Compliance

 | Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
