21032412301 | Harting

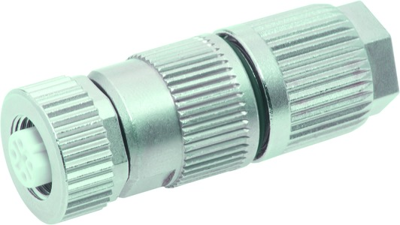

Jack, M12, 2 pole, IDC connection, screw locking, straight, 21032412301
Order No.: 45F842
EAN: 4099889691092
MPN:
21032412301
21 03 241 2301
Series: Circular connectors M12
Unit Price (€ / pc.)
48.4211 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
48.42 € *
Price list
Quantity
Price per unit*
1 pcs.
48.4211 €
10 pcs.
42.6139 €
50 pcs.
39.6984 €
100 pcs.
38.5441 €
250 pcs.
37.0804 €
*incl. VAT plus shipping costs
Subject to prior sale
Sensor-actuator connector, 09151000308, HARTING
Features
- Screw lock
- Degree of protection: IP67
- Made of: Copper-Zinc alloy
- RoHs-compatible
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Coding | B | |
| Orientation | straight | |
| Contact connection | IDC connection | |
| Pin number | 2 pole | |
| Product type | jack | |
| Degree of protection (IP) | IP65/IP67 | |
| contact surface | gold-plated | |
| Type of locking | screw locking | |
| Assembly | cable assembly | |
| Thread size | M12 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
