21031212801 | Harting

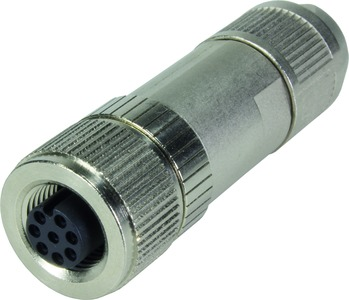

Jack, M12, 8 pole, IDC connection, screw locking, straight, 21031212801
Order No.: 45F827
EAN: 4099889690972
MPN:
21031212801
21 03 121 2801
Series: Circular connectors M12
Unit Price (€ / pc.)
89.3809 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
89.38 € *
Price list
Quantity
Price per unit*
1 pcs.
89.3809 €
10 pcs.
78.6590 €
50 pcs.
73.2921 €
100 pcs.
71.1382 €
*incl. VAT plus shipping costs
Subject to prior sale
Sensor-actuator connector, 21033292501, HARTING
Features
- Screw lock
- Pollution degree: 3
- Overvoltage category: II
- Material contact: Brass
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Coding | A | |
| Orientation | straight | |
| Contact connection | IDC connection | |
| Pin number | 8 pole | |
| Product type | jack | |
| Degree of protection (IP) | IP65/IP67 | |
| contact surface | gold-plated | |
| Type of locking | screw locking | |
| Assembly | cable assembly | |
| Thread size | M12 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
