21330800850005 | Harting

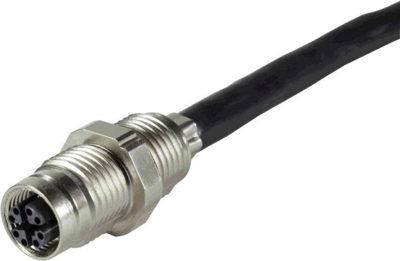

Sensor actuator cable, M12-cable socket, straight to open end, 8 pole, 0.5 m, 0.5 A, 21330800850005
Order No.: 42F9266
EAN: 5713140227927
MPN:
21330800850005
21 33 080 0850 005
Series: Circular connectors M12
Unit Price (€ / pc.)
35.3430 € *
Standard delivery time from the manufacturer is: On Request
Sensor actuator connector, 21330800850005, Harting
Panel feed through, pre-assembled on one side, EtherRail cable (4x 2x AWG 24/7), for rear mounting, cable length: 0.5 m.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| LED display | No | |
| Degree of protection (IP) | IP65/IP67 | |
| Pin number | 8 pole | |
| Connection (2) | open end | |
| max. Voltage | 50 V | |
| Cable length | 0.5 m | |
| Connection (1) | M12-cable socket, straight | |
| Rated current | 0.5 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444290 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
