21330800850003 | Harting

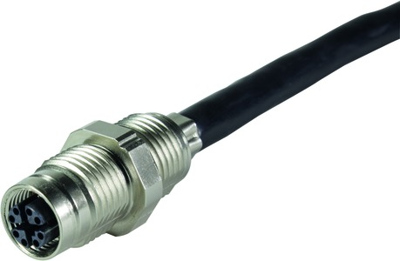

Sensor actuator cable, M12-cable socket, straight to open end, 8 pole, 1 m, PUR, yellow, 0.5 A, 21330800850003
Order No.: 45F3097
EAN: 4099891104696
MPN:
21330800850003
21 33 080 0850 003
Series: Circular connectors M12
Unit Price (€ / pc.)
55.8943 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
55.89 € *
Price list
Quantity
Price per unit*
1 pcs.
55.8943 €
10 pcs.
49.1827 €
50 pcs.
45.8269 €
100 pcs.
44.4822 €
*incl. VAT plus shipping costs
Subject to prior sale
Panel feed-through, one side assembled
Panel feed-through, one side assembled
The technical features of 21330800850003 rom Harting at a glance
- Designation M12 PFT Crimp 8-position x-coded female 0.3m
- Product Type Designation M12 PFT Crimp 8-position x-coded female 0.3m
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection (1) | M12-cable socket, straight | |
| Connection (2) | open end | |
| Pin number | 8 pole | |
| Cable length | 1 m | |
| Colour | yellow | |
| Material | PUR | |
| Degree of protection (IP) | IP67 | |
| LED display | No | |
| max. Voltage | 50 V | |
| Rated current | 0.5 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444290 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead, 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
