10361080006 | Harting

Connector kit, size 3A, 8 pole, IP67, 10361080006

Order No.: 44F8663
EAN: 4099889777529
MPN:
10361080006
10 36 108 0006
Series: Han EX D
10361080006 Harting Rectangular Connector Sets

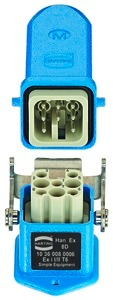

Image may differ
Unit Price (€ / pc.)
58.6551 € *
Available: 0 pcs.
Leadtime: 13 Weeks **
Total Price:
58.66 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
58.6551 €

Connector set, 10 36 108 0006, Harting

Connector set, Crimp termination, Rated current: 10 A, Contacts: 8, Size: 3 A, Single locking lever, Top entry, 1x M20, Material: Zinc die-cast, Powder-coated, Degree of protection: IP67, with seal screw 09 20 000 9918

Technical specifications
Cable Outlet M20, straight
Type of locking longitudinal bow locking
Degree of protection (IP) IP67
PE contact No
Contact connection crimp connection
Shell size 3A
Pin number 8 pole
Version connector kit
Shell Material zinc die casting
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
