10360120004 | Harting

Connector kit, size 3A, 12 pole + PE , IP67, 10360120004

Order No.: 44F8657
EAN: 4099889777468
MPN:
10360120004
10 36 012 0004
Series: Han Q
10360120004 Harting Rectangular Connector Sets
Image may differ
Unit Price (€ / pc.)
59.6428 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
59.64 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
59.6428 €

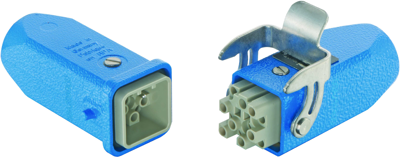

Connector set, 10 36 012 0004, Harting

Connector set, Crimp termination, Rated current: 10 A, Contacts: 12, Size: 3 A, Single locking lever, Top entry, 1x M20, 1x M20, Material: Zinc die-cast, Powder-coated, Degree of protection: IP67, with seal screw 09 20 000 9918

Technical specifications
Filter Property Value
Contact connection crimp connection
Shell Material zinc die casting
Cable Outlet M20, straight
Degree of protection (IP) IP67
Version connector kit
Shell size 3A
Pin number 12 pole
Type of locking longitudinal bow locking
PE contact Yes
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
