27111618001 | Harting

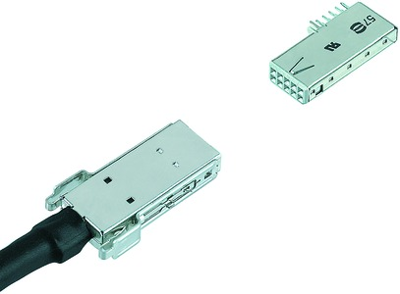

Male connector, 10 pole, pitch 2 mm, straight, silver, 27111618001
Unit Price (€ / pc.)
23.8000 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
23.80 € *
Price list
Quantity
Price per unit*
1 pcs.
23.8000 €
5 pcs.
22.7171 €
10 pcs.
22.0507 €
25 pcs.
20.5394 €
*incl. VAT plus shipping costs
Subject to prior sale
Male connector, 27111618001, Harting
Connectors, Male connector, IDC insulation displacement termination, Polyester, Black, Rated current: 1.5 A, Contacts: 10, Conductor cross-section: 0.05 - 0.08 mm², Copper alloy, Au over Ni Mating side
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | male connector | |
| Contact type | pin | |
| Pin number | 10 pole | |
| Grid | 2 mm | |
| Connection | IDC connection | |
| Orientation | straight | |
| Type of locking | Yes | |
| contact surface | gold-plated | |
| Rated current | 1.5 A | |
| Additional parts | equipped | |
| Number of rows | 2 | |
| Colour | silver |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CH |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
