15230682401333 | Harting

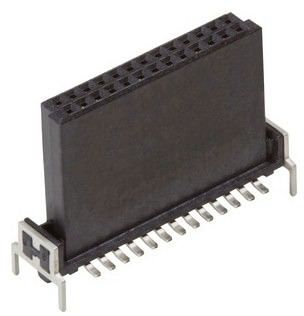

Female connector, 68 pole, pitch 1.27 mm, straight, black, 15230682401333
Unit Price (€ / pc.)
31.4517 € *
Standard delivery time from the manufacturer is: On Request
Female connector, 15230682401333, Harting
Female connector with reflow soldering termination (THR), straight, copper alloy, contacts: 68, performance level: 1.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 1.27 mm | |
| Pin number | 68 pole | |
| Colour | black | |
| Connection plating | tin-plated | |
| Contact type | socket | |
| Rated current | 2.3 A | |
| Version | PCB connector | |
| Connection | solder pin | |
| Additional parts | equipped | |
| Number of rows | 2 | |
| Rated voltage | 150 V | |
| contact surface | gold-plated | |
| Orientation | straight |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
