14310515106000 | Harting

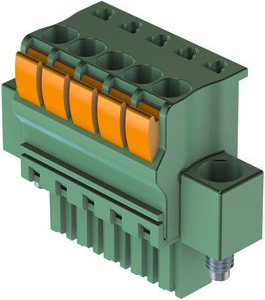

PCB connector, 5 pole, pitch 3.81 mm, green, 14310515106000
Unit Price (€ / pc.)
4.3435 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
4.34 € *
Price list
Quantity
Price per unit*
1 pcs.
4.3435 €
10 pcs.
4.0698 €
25 pcs.
3.9508 €
50 pcs.
3.6771 €
*incl. VAT plus shipping costs
Subject to prior sale
Connector, 14310515106000, Harting
Connector, Horizontal, Push-in-spring-cage termination, Rated current: 11 A, Contacts: 5, Copper alloy, Sn Mating side, PCB fixing: With screw flange, Polyamide (PA), Polyphthalamide (PPA), Green.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | socket header | |
| Contact type | socket | |
| Pin number | 5 pole | |
| Grid | 3.81 mm | |
| Connection | push-in spring connection | |
| contact surface | tin-plated | |
| Rated voltage | 150 V | |
| Rated current | 11 A | |
| Number of rows | 1 | |
| Colour | green |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | IT |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
