14131217001000 | Harting
PCB connector, 12 pole, pitch 5.08 mm, straight, green, 14131217001000
Order No.: 42F8853
EAN: 5713140206267
MPN:
14131217001000
har-flexicon 5,08 MWV-12 GN
Series: HAR-FLEXICON
Unit Price (€ / pc.)
1.8445 € *
Standard delivery time from the manufacturer is: On Request

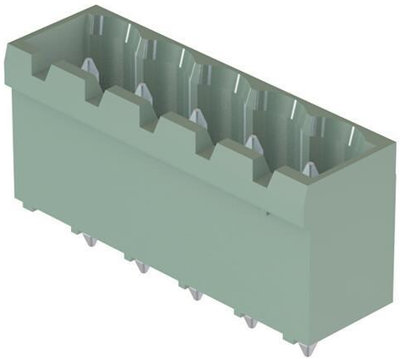

Header, 14131217001000, Harting
The 14131217001000 is a vertical header with copper alloy and polyamide material.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 5.08 mm | |
| contact surface | silver-plated | |
| Contact type | pin | |
| Connection | PCB connection | |
| Connection plating | silver-plated | |
| Rated voltage | 250 V | |
| Orientation | straight | |
| Number of rows | 1 | |
| Pin number | 12 pole | |
| Additional parts | equipped | |
| Colour | green | |
| Version | pin header | |
| Rated current | 15 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
