14120815006000 | Harting
PCB connector, 8 pole, pitch 3.81 mm, angled, black, 14120815006000
Order No.: 42F8825
EAN: 5713140207578
MPN:
14120815006000
har-flexicon 3,81 MTH-8 BK SL
Series: HAR-FLEXICON
Unit Price (€ / pc.)
2.4752 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
2.48 € *
Price list
Quantity
Price per unit*
1 pcs.
2.4752 €
10 pcs.
2.3205 €
50 pcs.
2.2491 €
100 pcs.
2.0587 €
*incl. VAT plus shipping costs
Subject to prior sale

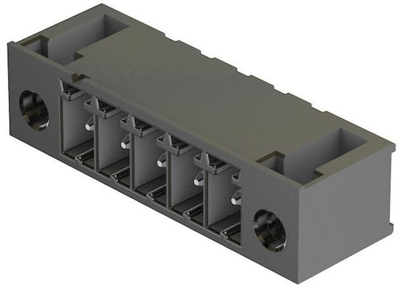

Header, 14120815006000, Harting
The 14120815006000 is a horizontal header with reflow soldering termination and PCB fixing thread flange.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | pin header | |
| Contact type | pin | |
| Pin number | 8 pole | |
| Grid | 3.81 mm | |
| Connection | solder connection | |
| Orientation | angled | |
| Type of locking | Yes | |
| contact surface | silver-plated | |
| Connection plating | silver-plated | |
| Rated voltage | 150 V | |
| Rated current | 11 A | |
| Additional parts | equipped | |
| Number of rows | 1 | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | IT |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
