14120517006000 | Harting

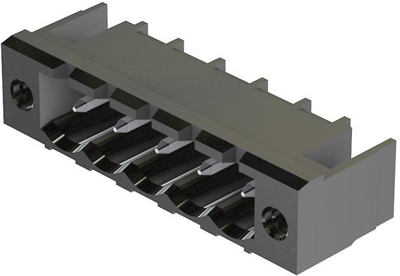

PCB connector, 5 pole, pitch 5.08 mm, angled, black, 14120517006000
Order No.: 42F8850
EAN: 5713140207578
MPN:
14120517006000
har-flexicon 5,08 MTH-5 BK SL
Series: HAR-FLEXICON
Unit Price (€ / pc.)
1.8802 € *
Standard delivery time from the manufacturer is: On Request
Header, 14120517006000, Harting
The 14120517006000 is a horizontal header with reflow soldering termination and PCB fixing thread flange.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 5.08 mm | |
| contact surface | silver-plated | |
| Contact type | pin | |
| Connection | solder connection | |
| Connection plating | silver-plated | |
| Rated voltage | 250 V | |
| Orientation | angled | |
| Number of rows | 1 | |
| Type of locking | Yes | |
| Pin number | 5 pole | |
| Additional parts | equipped | |
| Colour | black | |
| Version | pin header | |
| Rated current | 15 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
