14110213010160 | Harting

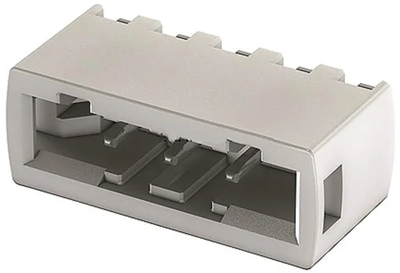

PCB connector, 2 pole, pitch 2.54 mm, straight, white, 14110213010160
Unit Price (€ / pc.)
1.0591 € *
Standard delivery time from the manufacturer is: 7 Weeks
Total Price:
1.06 € *
Price list
Quantity
Price per unit*
1 pcs.
1.0591 €
10 pcs.
0.9996 €
50 pcs.
0.9163 €
100 pcs.
0.8330 €
600 pcs.
0.7497 €
*incl. VAT plus shipping costs
Subject to prior sale
har-flexicon 2.54 MSH-2 T24 WH
Header, horizontal, reflow solder connection (SMT), rated current: 6 A, contacts: 2, copper alloy, spring steel, Sn over Ni on connector side, Sn over Ni on terminal side, liquid crystal polymer (LCP), white
Technical specifications
| Breakable | No | |
| Rated current | 6 A | |
| contact surface | Sn over Ni | |
| Additional parts | equipped | |
| Orientation | straight | |
| Connection plating | Sn over Ni | |
| Contact type | pin | |
| Version | pin header | |
| Pin number | 2 pole | |
| Rated voltage | 160 V | |
| Number of rows | 1 | |
| Colour | white | |
| Connection | PCB connection | |
| Grid | 2.54 mm |
Download
Logistics
| Original Packaging | Reel with 600 pieces |
| Country of origin | VN |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
