14030616101000 | Harting
PCB connector, 6 pole, pitch 5 mm, green, 14030616101000
Unit Price (€ / pc.)
2.4871 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
2.49 € *
Price list
Quantity
Price per unit*
1 pcs.
2.4871 €
10 pcs.
2.2610 €
50 pcs.
2.0587 €
100 pcs.
1.8564 €
*incl. VAT plus shipping costs
Subject to prior sale

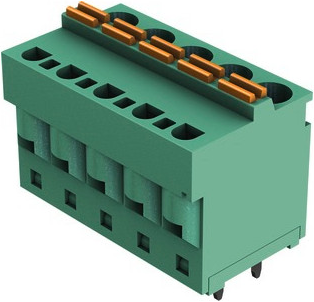

PCB terminal block, 14030616101000, Harting
PCB terminal block, Vertical, Push-in-spring-cage termination, Wave soldering termination, Rated current: 12 A, Contacts: 6, Copper alloy, Sn over Ni Mating side, Sn over Ni Termination side, Polyamide (PA), Green.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 5 mm | |
| contact surface | tin-plated | |
| Connection | push-in spring connection | |
| Connection plating | tin-plated | |
| Rated voltage | 300 V | |
| Number of rows | 1 | |
| Pin number | 6 pole | |
| Colour | green | |
| Version | print terminal | |
| Rated current | 12 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
