14030516101000 | Harting
PCB connector, 5 pole, pitch 5 mm, straight, green, 14030516101000
Order No.: 42F8839
EAN: 5713140208599
MPN:
14030516101000
har-flexicon 5,00 TWPV-5 GN
Series: HAR-FLEXICON
Unit Price (€ / pc.)
1.7493 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
8.75 € *
Price list
Quantity
Price per unit*
5 pcs.
1.7493 €
50 pcs.
1.6303 €
100 pcs.
1.5827 €
250 pcs.
1.4756 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB terminal block, 14030516101000, Harting

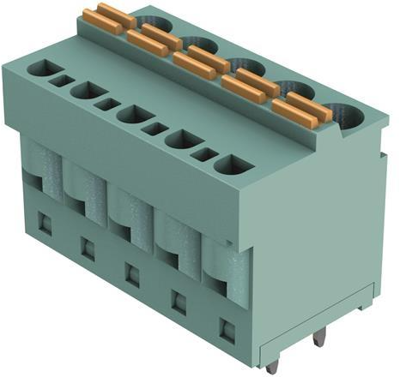

The 14030516101000 is a vertical PCB terminal block with push-in-spring-cage termination and wave soldering termination.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 5 pole | |
| Grid | 5 mm | |
| Connection | push-in spring connection | |
| Orientation | straight | |
| contact surface | silver-plated | |
| Connection plating | silver-plated | |
| Rated voltage | 300 V | |
| Rated current | 12 A | |
| Additional parts | equipped | |
| Number of rows | 1 | |
| Colour | green |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | IT |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
