09195507822 | Harting

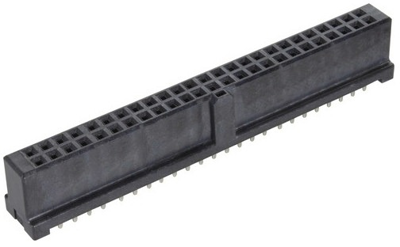

Female connector, 50 pole, pitch 2.54 mm, straight, black, 09195507822

Order No.: 42P2433
EAN: 5713140212862
MPN:
09195507822
09 19 550 7822
Series: SEK Mezzanine
09195507822 Harting PCB Connection Systems
Image may differ
Unit Price (€ / pc.)
3.2249 € *
Standard delivery time from the manufacturer is: 7 Weeks
Total Price:
3.22 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
3.2249 €

Female connector, 09195507822, Harting

Straight female connector with reflow soldering termination (THR), wave soldering termination, 50 contacts, performance level: 3.

Technical specifications
Colour black
Type of locking Yes
contact surface gold-plated
Rated current 1 A
Grid 2.54 mm
Connection plating tin-plated
Pin number 50 pole
Version female connector
Additional parts equipped
Orientation straight
Connection solder pin
Contact type socket
Number of rows 2
Logistics
Country of origin CN
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
