09195206323741 | Harting

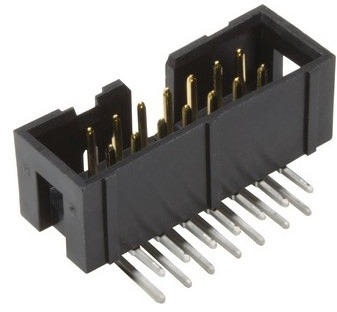

Male connector, 20 pole, pitch 2.54 mm, angled, black, 09195206323741
Order No.: 42P2043
EAN: 5713140212121
MPN:
09195206323741
09 19 520 6323 741
Series: SEK Low-profile
Unit Price (€ / pc.)
2.5347 € *
Standard delivery time from the manufacturer is: 7 Weeks
Total Price:
2.53 € *
Price list
Quantity
Price per unit*
1 pcs.
2.5347 €
10 pcs.
2.3681 €
50 pcs.
2.2967 €
100 pcs.
2.1063 €
*incl. VAT plus shipping costs
Subject to prior sale
Male connector, 09195206323741, Harting
Male connector with reflow soldering termination, angled, 20 contacts, Performance level: 2.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | male connector | |
| Contact type | pin | |
| Pin number | 20 pole | |
| Grid | 2.54 mm | |
| Connection | solder pin | |
| Orientation | angled | |
| Type of locking | Yes | |
| Connection plating | tin-plated | |
| Rated current | 1 A | |
| Additional parts | equipped | |
| Number of rows | 2 | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | RO |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
