09185646804 | Harting

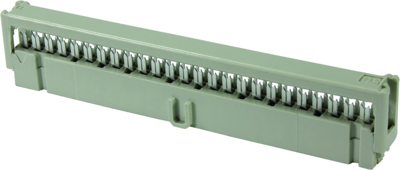

Socket header, 64 pole, pitch 2.54 mm, straight, gray, 09185646804
Unit Price (€ / pc.)
5.1884 € *
Available: 40 pcs.
Total Price:
5.19 € *
Price list
Quantity
Price per unit*
1 pcs.
5.1884 €
10 pcs.
4.7719 €
50 pcs.
4.3316 €
100 pcs.
3.9032 €
*incl. VAT plus shipping costs
Subject to prior sale
Female insulation displacement connectors DIN 41651, female contacts, with center polarity coding, type Harting SEK 18 0918.
Without cable termination. Corresponding DIN 41651 pin headers; Contacts: gold-plated. Performance class 2 (200 insertion cycles). With marking for the edge wire. Cable partition: 1.27 mm. Cable cross-section: stranded wire 0.09 mm² (AWG 28/7). Please order the strain relief clamps separately (1 per strip). Dimension B: (number of poles/2 - 1) x 2.54 mm.
Female connectors with center polarity and cable termination, type 0918.
Technical attributes (type, number of poles, dimension A): 5646804, 64-pole, A 85.9 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 2.5 A | |
| contact surface | gold-plated | |
| Orientation | straight | |
| Connection | IDC connection | |
| Colour | gray | |
| Rated voltage | 320 V | |
| Version | socket header | |
| Connection plating | tin-plated | |
| Pin number | 64 pole | |
| Contact type | socket | |
| Number of rows | 2 | |
| Grid | 2.54 mm | |
| Additional parts | equipped |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CH |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
