09185606924 | Harting

Pin header, 60 pole, pitch 2.54 mm, straight, gray, 09185606924

Order No.: 53F4045
EAN: 4099889998863
MPN:
09185606924
09 18 560 6924
Series: SEK

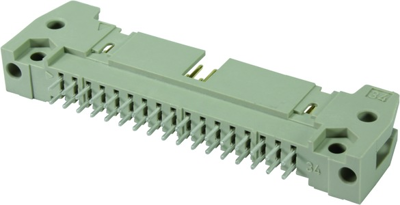

09185606924 Harting PCB Connection Systems Image 1
09185606924 Harting PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
3.8794 € *
Standard delivery time from the manufacturer is: 7 Weeks
Total Price:
3.88 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
3.8794 €

Pin headers, straight, DIN 41651, type Harting SEK 18 0918.

Standard version for PCB mounting. For inserting DIN 41651 female connectors. With center polarity, polarity nipples and marking for contact one; Basic grid: 2.54 mm. Operating current: 1.0 A. Test voltage: 1.0 kV. Insulation resistance: at least 10 Gohm. Operating temperatures: –55 to +125 °C. Housing: thermoplastic, self-extinguishing to UL 94 V-0. Contacts: gold-plated. Performance class 2 (at least 200 insertion cycles). With 2.9 mm solder pins, tinned for 0.9 mm holes. Versions: 6-pole without polarity nipples and center polarity. 10 and 14-pole without polarity nipples. Dimension E: (number of poles/2 - 1) x 2.54 mm. Dimension D: E + 7.37 mm. Interlocks are available on separate order (2 per strip).

Technical attributes (type, number of poles, dimension A): 5606924, 60-pole, A 95.5 mm

Technical specifications
Filter Property Value
Grid 2.54 mm
Pin number 60 pole
Colour gray
Connection plating tin-plated
Contact type pin
Rated current 1 A
Version pin header
Connection PCB connection
Additional parts equipped
Number of rows 2
Rated voltage 500 V
contact surface gold-plated
Orientation straight
Logistics
Property Value
Customs tariff number 85366990
Country of origin CH
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
