0918540781358U | Harting

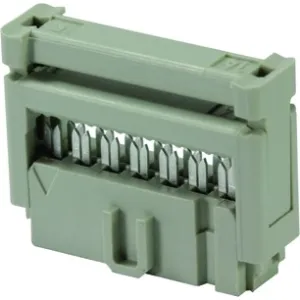

Female connector, 40 pole, pitch 2.54 mm, straight, gray, 0918540781358U

Order No.: 45F5111
EAN: 4099891020606
MPN:
0918540781358U
09 18 540 7813 58U
Series: SEK
0918540781358U Harting PCB Connection Systems
Image may differ
Unit Price (€ / pc.)
1.5589 € *
Standard delivery time from the manufacturer is: 7 Weeks
Total Price:
1.56 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
1.5589 €

Female connector, 0918540781358U, Harting

Female connector, Rated current: ‌2.5 A, Thermoplastic resin (PBT), Grey, Contacts: 40, Performance level: 3, acc. to IEC 60603-13, Copper alloy, Noble metal over Ni Mating side, Sn over Ni Termination side.

Technical specifications
Filter Property Value
Rated current 2.5 A
Version female connector
Contact type socket
Number of rows 2
Pin number 40 pole
Additional parts equipped
Orientation straight
Grid 2.54 mm
Colour gray
Connection plating tin-plated
Connection IDC connection
contact surface gold-plated
Logistics
Property Value
Customs tariff number 85366990
Country of origin CH
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
