09185406803 | Harting

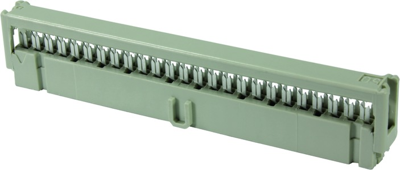

Socket header, 40 pole, pitch 2.54 mm, straight, gray, 09185406803
Unit Price (€ / pc.)
4.1055 € *
Available: 282 pcs.
Total Price:
4.11 € *
Price list
Quantity
Price per unit*
1 pcs.
4.1055 €
10 pcs.
3.8199 €
50 pcs.
3.5105 €
100 pcs.
3.2011 €
*incl. VAT plus shipping costs
Subject to prior sale
Female insulation displacement connectors DIN 41651, female contacts, with center polarity coding, type Harting SEK 18 0918.
Without cable termination. Corresponding DIN 41651 pin headers; Contacts: gold-plated. Performance class 2 (200 insertion cycles). With marking for the edge wire. Cable partition: 1.27 mm. Cable cross-section: stranded wire 0.09 mm² (AWG 28/7). Please order the strain relief clamps separately (1 per strip). Dimension B: (number of poles/2 - 1) x 2.54 mm.
Technical attributes (type, number of poles, dimension A): 5406803, 40-pole, A 55.4 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 2.5 A | |
| Orientation | straight | |
| Grid | 2.54 mm | |
| contact surface | gold-plated | |
| Number of rows | 2 | |
| Additional parts | equipped | |
| Version | socket header | |
| Contact type | socket | |
| Connection plating | tin-plated | |
| Rated voltage | 320 V | |
| Connection | IDC connection | |
| Pin number | 40 pole | |
| Colour | gray |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CH |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
