09185346924 | Harting

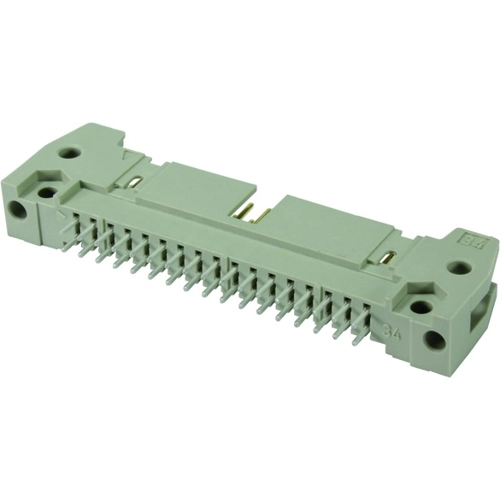

Pin header, 34 pole, pitch 2.54 mm, straight, gray, 09185346924
Pin headers, straight, DIN 41651, type Harting SEK 18 0918.
Standard version for PCB mounting. For inserting DIN 41651 female connectors. With center polarity, polarity nipples and marking for contact one; Basic grid: 2.54 mm. Operating current: 1.0 A. Test voltage: 1.0 kV. Insulation resistance: at least 10 Gohm. Operating temperatures: –55 to +125 °C. Housing: thermoplastic, self-extinguishing to UL 94 V-0. Contacts: gold-plated. Performance class 2 (at least 200 insertion cycles). With 2.9 mm solder pins, tinned for 0.9 mm holes. Versions: 6-pole without polarity nipples and center polarity. 10 and 14-pole without polarity nipples. Dimension E: (number of poles/2 - 1) x 2.54 mm. Dimension D: E + 7.37 mm. Interlocks are available on separate order (2 per strip).
Technical attributes (type, number of poles, dimension A): 5346924, 34-pole, A 62.5 mm
| Colour | gray | |
| Orientation | straight | |
| Rated current | 1 A | |
| Connection | PCB connection | |
| Grid | 2.54 mm | |
| Additional parts | equipped | |
| Connection plating | tin-plated | |
| Pin number | 34 pole | |
| Rated voltage | 500 V | |
| Number of rows | 2 | |
| Version | pin header | |
| Contact type | pin | |
| contact surface | gold-plated |
| Customs tariff number | 85366990 |
| Country of origin | CH |
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
