09185346804 | Harting

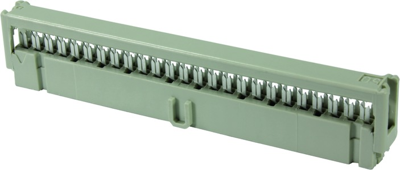

Socket header, 34 pole, pitch 2.54 mm, straight, gray, 09185346804
Unit Price (€ / pc.)
4.7362 € *
Available: 483 pcs.
Total Price:
4.74 € *
Price list
Quantity
Price per unit*
1 pcs.
4.7362 €
10 pcs.
4.4030 €
50 pcs.
4.0579 €
100 pcs.
3.6890 €
*incl. VAT plus shipping costs
Subject to prior sale
Female insulation displacement connectors DIN 41651, female contacts, with center polarity coding, type Harting SEK 18 0918.
Without cable termination. Corresponding DIN 41651 pin headers; Contacts: gold-plated. Performance class 2 (200 insertion cycles). With marking for the edge wire. Cable partition: 1.27 mm. Cable cross-section: stranded wire 0.09 mm² (AWG 28/7). Please order the strain relief clamps separately (1 per strip). Dimension B: (number of poles/2 - 1) x 2.54 mm.
Female connectors with center polarity and cable termination, type 0918.
Technical attributes (type, number of poles, dimension A): 5346804, 34-pole, A 47.8 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 2.5 A | |
| Additional parts | equipped | |
| contact surface | gold-plated | |
| Version | socket header | |
| Orientation | straight | |
| Connection plating | tin-plated | |
| Grid | 2.54 mm | |
| Number of rows | 2 | |
| Contact type | socket | |
| Colour | gray | |
| Pin number | 34 pole | |
| Connection | IDC connection | |
| Rated voltage | 320 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CH |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
