09185206323001 | Harting
Male connector, 20 pole, pitch 2.54 mm, angled, black, 09185206323001
Order No.: 42P2021
EAN: 5713140214545
MPN:
09185206323001
09 18 520 6323 001
Series: SEK Low-profile
Unit Price (€ / pc.)
1.7493 € *
Standard delivery time from the manufacturer is: 7 Weeks
Total Price:
8.75 € *
Price list
Quantity
Price per unit*
5 pcs.
1.7493 €
50 pcs.
1.6303 €
100 pcs.
1.5827 €
250 pcs.
1.4756 €
*incl. VAT plus shipping costs
Subject to prior sale

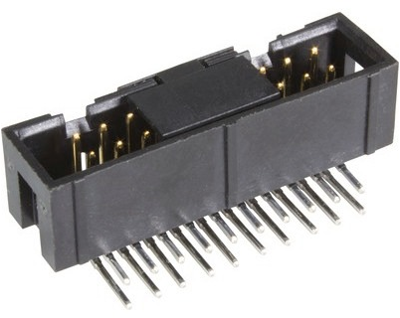

Male connector, 09185206323001, Harting
Male connector with wave soldering termination, angled, 20 contacts, black.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | male connector | |
| Contact type | pin | |
| Pin number | 20 pole | |
| Grid | 2.54 mm | |
| Connection | solder pin | |
| Orientation | angled | |
| Connection plating | tin-plated | |
| Rated current | 1 A | |
| Additional parts | equipped | |
| Number of rows | 2 | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | RO |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
