09185146803 | Harting

Socket header, 14 pole, pitch 2.54 mm, straight, gray, 09185146803

Order No.: 53F3510
EAN: 4099889998573
MPN:
09185146803
09 18 514 6803
Series: SEK

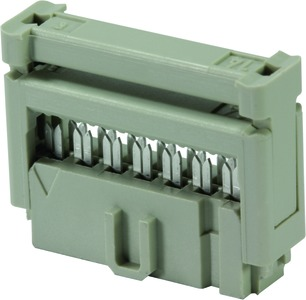

09185146803 Harting PCB Connection Systems Image 1
09185146803 Harting PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
2.2015 € *
Available: 741 pcs.
Next delivery: 5,000 pcs. on 2025-08-25
Total Price:
2.20 € *
Price list
Quantity
Price per unit*
1 pcs.
2.2015 €
10 pcs.
2.0468 €
50 pcs.
1.8802 €
100 pcs.
1.7136 €
*incl. VAT plus shipping costs
Subject to prior sale

Female insulation displacement connectors DIN 41651, female contacts, with center polarity coding, type Harting SEK 18 0918.

Without cable termination. Corresponding DIN 41651 pin headers; Contacts: gold-plated. Performance class 2 (200 insertion cycles). With marking for the edge wire. Cable partition: 1.27 mm. Cable cross-section: stranded wire 0.09 mm² (AWG 28/7). Please order the strain relief clamps separately (1 per strip). Dimension B: (number of poles/2 - 1) x 2.54 mm.

Technical attributes (type, number of poles, dimension A): 5146803, 14-pole, A 22.4 mm

Technical specifications
Filter Property Value
Rated current 2.5 A
Rated voltage 320 V
Version socket header
Number of rows 2
Orientation straight
Additional parts equipped
contact surface gold-plated
Pin number 14 pole
Grid 2.54 mm
Contact type socket
Colour gray
Connection plating tin-plated
Connection IDC connection
Logistics
Property Value
Country of origin RO
Customs tariff number 85366990
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
