09185107813 | Harting

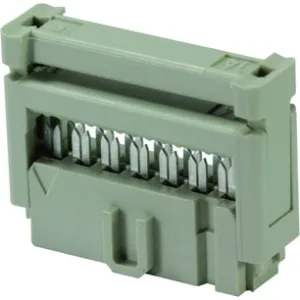

Female connector, 10 pole, pitch 2.54 mm, straight, gray, 09185107813
Unit Price (€ / pc.)
1.9397 € *
Available: 299 pcs.
Total Price:
1.94 € *
Price list
Quantity
Price per unit*
1 pcs.
1.9397 €
10 pcs.
1.7731 €
50 pcs.
1.6184 €
100 pcs.
1.4161 €
500 pcs.
1.2495 €
*incl. VAT plus shipping costs
Subject to prior sale
Female connector, 09185107813, Harting
Female connector, Rated current: 2.5 A, Thermoplastic resin (PBT), Grey, Contacts: 10, Performance level: 3, acc. to IEC 60603-13, Copper alloy, Noble metal over Ni Mating side, Sn over Ni Termination side
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 2.5 A | |
| Additional parts | equipped | |
| contact surface | gold-plated | |
| Version | female connector | |
| Orientation | straight | |
| Connection plating | tin-plated | |
| Grid | 2.54 mm | |
| Number of rows | 2 | |
| Contact type | socket | |
| Colour | gray | |
| Pin number | 10 pole | |
| Connection | IDC connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CH |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
