09185106803 | Harting

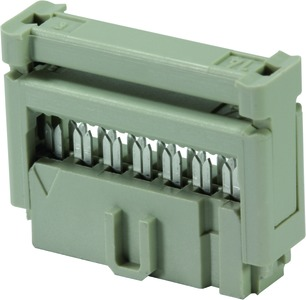

Socket header, 10 pole, pitch 2.54 mm, straight, gray, 09185106803
Unit Price (€ / pc.)
1.4994 € *
Next delivery: 10,984 pcs. on 2025-08-25
Total Price:
1.50 € *
Price list
Quantity
Price per unit*
1 pcs.
1.4994 €
10 pcs.
1.4637 €
50 pcs.
1.2852 €
250 pcs.
1.1067 €
1000 pcs.
0.9758 €
2500 pcs.
0.8925 €
*incl. VAT plus shipping costs
Subject to prior sale
Female insulation displacement connectors DIN 41651, female contacts, with center polarity coding, type Harting SEK 18 0918.
Without cable termination. Corresponding DIN 41651 pin headers; Contacts: gold-plated. Performance class 2 (200 insertion cycles). With marking for the edge wire. Cable partition: 1.27 mm. Cable cross-section: stranded wire 0.09 mm² (AWG 28/7). Please order the strain relief clamps separately (1 per strip). Dimension B: (number of poles/2 - 1) x 2.54 mm.
Technical attributes (type, number of poles, dimension A): 5106803, 10-pole, A 17.3 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact type | socket | |
| Additional parts | equipped | |
| contact surface | gold-plated | |
| Rated voltage | 320 V | |
| Rated current | 2.5 A | |
| Orientation | straight | |
| Colour | gray | |
| Grid | 2.54 mm | |
| Connection | IDC connection | |
| Number of rows | 2 | |
| Version | socket header | |
| Pin number | 10 pole | |
| Connection plating | tin-plated |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CH |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
