09185066924 | Harting

Pin header, 6 pole, pitch 2.54 mm, straight, gray, 09185066924

Order No.: 53F4000
EAN: 4099889998771
MPN:
09185066924
09 18 506 6924
Series: SEK

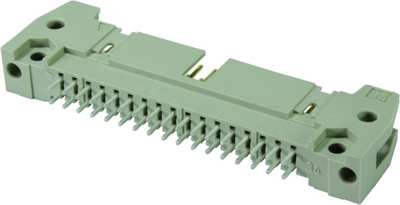

09185066924 Harting PCB Connection Systems Image 1
09185066924 Harting PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
1.8088 € *
Available: 282 pcs.
Total Price:
1.81 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
1.8088 €

Pin headers, straight, DIN 41651, type Harting SEK 18 0918.

Standard version for PCB mounting. For inserting DIN 41651 female connectors. With center polarity, polarity nipples and marking for contact one; Basic grid: 2.54 mm. Operating current: 1.0 A. Test voltage: 1.0 kV. Insulation resistance: at least 10 Gohm. Operating temperatures: –55 to +125 °C. Housing: thermoplastic, self-extinguishing to UL 94 V-0. Contacts: gold-plated. Performance class 2 (at least 200 insertion cycles). With 2.9 mm solder pins, tinned for 0.9 mm holes. Versions: 6-pole without polarity nipples and center polarity. 10 and 14-pole without polarity nipples. Dimension E: (number of poles/2 - 1) x 2.54 mm. Dimension D: E + 7.37 mm. Interlocks are available on separate order (2 per strip).

Technical attributes (type, number of poles, dimension A): 5066924, 6-pole, A 26.9 mm

Technical specifications
Filter Property Value
Rated voltage 500 V
Rated current 1 A
Grid 2.54 mm
Connection plating tin-plated
Number of rows 2
Orientation straight
contact surface gold-plated
Version pin header
Colour gray
Connection PCB connection
Pin number 6 pole
Additional parts equipped
Contact type pin
Logistics
Property Value
Country of origin CH
Customs tariff number 85366990
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
