09185066804 | Harting

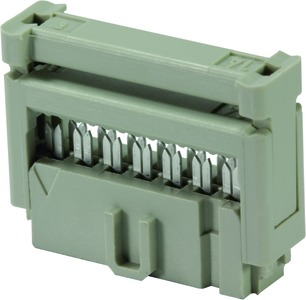

Socket header, 6 pole, pitch 2.54 mm, straight, gray, 09185066804
Unit Price (€ / pc.)
2.0111 € *
Available: 204 pcs.
Female insulation displacement connectors DIN 41651, female contacts, with center polarity coding, type Harting SEK 18 0918.
Without cable termination. Corresponding DIN 41651 pin headers; Contacts: gold-plated. Performance class 2 (200 insertion cycles). With marking for the edge wire. Cable partition: 1.27 mm. Cable cross-section: stranded wire 0.09 mm² (AWG 28/7). Please order the strain relief clamps separately (1 per strip). Dimension B: (number of poles/2 - 1) x 2.54 mm.
Female connectors with center polarity and cable termination, type 0918.
Technical attributes (type, number of poles, dimension A): 5066804, 6-pole, A 12.2 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 2.5 A | |
| contact surface | gold-plated | |
| Orientation | straight | |
| Connection | IDC connection | |
| Colour | gray | |
| Rated voltage | 320 V | |
| Version | socket header | |
| Connection plating | tin-plated | |
| Pin number | 6 pole | |
| Contact type | socket | |
| Number of rows | 2 | |
| Grid | 2.54 mm | |
| Additional parts | equipped |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CH |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
