09170409622 | Harting

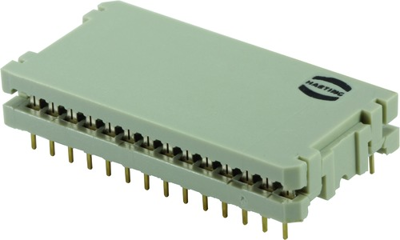

Pin header, 40 pole, pitch 1.27 mm, straight, beige, 09170409622
Unit Price (€ / pc.)
4.5815 € *
Standard delivery time from the manufacturer is: 7 Weeks
Insulation displacement connectors for IC socket series SEK 17, type Harting 0917.
For solder mounting on PCBs or insertion in IC socket; Grid: 2.54 mm. Operating current: 1.0 A. Test voltage: 500 V. Insulation resistance: min. 10 Gohm. Contact resistance: max. 20 mohm. Insulator material: thermoplastic mold (PC), UL 94 V-0. Contacts: tinned. Connections: 0.45 x 0.35 mm solder pins for 0.8 mm holes. Can be connected to ribbon cables with 1.27 mm grid (AWG 26/7 to AWG 28/7). Operating temperatures: –40 to +125 °C.
Technical attributes (type, number of poles, dimensions A/C/D): 09170409622, 40–pole, A 53.3/C 18.7/D 15.24 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 1.27 mm | |
| Pin number | 40 pole | |
| Colour | beige | |
| Contact type | pin | |
| Rated current | 1 A | |
| Version | pin header | |
| Connection | PCB connection | |
| Additional parts | equipped | |
| Number of rows | 2 | |
| contact surface | tin-plated | |
| Orientation | straight |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
