09170149622 | Harting

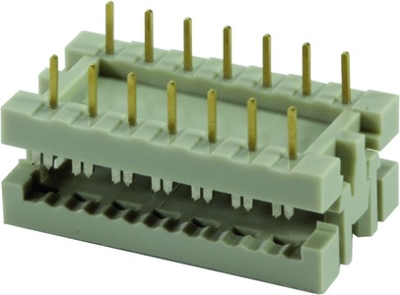

Pin header, 14 pole, pitch 1.27 mm, straight, beige, 09170149622
Insulation displacement connectors for IC socket series SEK 17, type Harting 0917.
For solder mounting on PCBs or insertion in IC socket; Grid: 2.54 mm. Operating current: 1.0 A. Test voltage: 500 V. Insulation resistance: min. 10 Gohm. Contact resistance: max. 20 mohm. Insulator material: thermoplastic mold (PC), UL 94 V-0. Contacts: tinned. Connections: 0.45 x 0.35 mm solder pins for 0.8 mm holes. Can be connected to ribbon cables with 1.27 mm grid (AWG 26/7 to AWG 28/7). Operating temperatures: –40 to +125 °C.
Technical attributes (type, number of poles, dimensions A/C/D): 09170149622, 14–pole, A 20.5/C 11/D 7.62 mm
Filter | Property | Value |
---|---|---|
Connection | IDC connection | |
Colour | beige | |
Additional parts | equipped | |
Pin number | 14 pole | |
Contact type | pin | |
Orientation | straight | |
contact surface | tin-plated | |
Version | pin header | |
Rated current | 1 A | |
Number of rows | 2 | |
Grid | 1.27 mm |
Property | Value |
---|---|
Country of origin | DE |
Customs tariff number | 85366990 |
Property | Value |
---|---|
RoHS conform | Yes |
SVHC free | Yes |
Date of RoHS guidelines | 3/31/15 |
