02539091103 | Harting
Male connector, 9 pole, pitch 2.54 mm, straight, black, 02539091103
Order No.: 42F9052
EAN: 5713140197961
MPN:
02539091103
har-modular C9 module male straight Pa3
Series: har-modular
Unit Price (€ / pc.)
2.023 € *
Standard delivery time from the manufacturer is: 19 Weeks

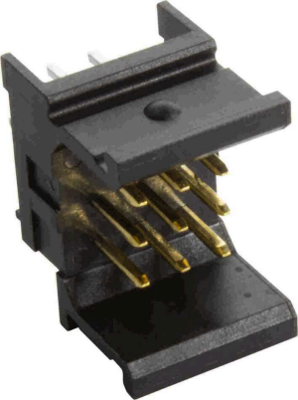

Male connector, 02539091103, Harting
The 02539091103 straight male connector is terminated using reflow soldering (THR) and wave soldering termination, made of Polyamide (PA) material in a black color. Number of contacts: 9.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| Additional parts | equipped | |
| Number of rows | 3 | |
| Connection | solder pin | |
| Orientation | straight | |
| Type of locking | Yes | |
| contact surface | gold-plated | |
| Version | male connector | |
| Connection plating | tin-plated | |
| Pin number | 9 pole | |
| Contact type | pin | |
| Grid | 2.54 mm | |
| Rated current | 2 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | RO |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
