02539031301 | Harting

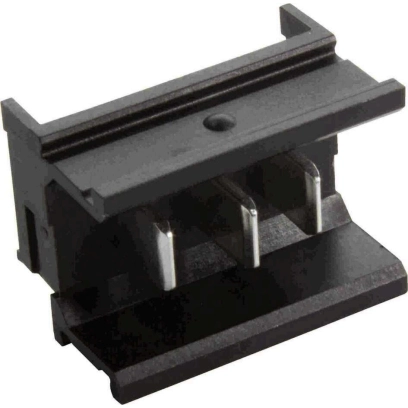

Male connector, 3 pole, pitch 5.08 mm, straight, black, 02539031301
Order No.: 42F9047
EAN: 5713140197992
MPN:
02539031301
har-modular H3 module male straight
Series: har-modular
Unit Price (€ / pc.)
3.5105 € *
Standard delivery time from the manufacturer is: 1 Week
Male connector, 02539031301, Harting
The 02539031301 straight male connector is terminated using reflow soldering (THR) and wave soldering termination, made of Polyamide (PA) material in a black color. Number of contacts: 3.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 5.08 mm | |
| Pin number | 3 pole | |
| Colour | black | |
| Connection plating | tin-plated | |
| Contact type | pin | |
| Rated current | 15 A | |
| Version | male connector | |
| Connection | solder pin | |
| Additional parts | equipped | |
| Number of rows | 1 | |
| contact surface | silver-plated | |
| Orientation | straight | |
| Type of locking | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | RO |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
