02529091101 | Harting
Female connector, 9 pole, pitch 2.54 mm, straight, black, 02529091101
Order No.: 42F9038
EAN: 5713140198012
MPN:
02529091101
har-modular C9 module female straight
Series: har-modular
Unit Price (€ / pc.)
2.2848 € *
Available: 330 pcs.
Total Price:
2.28 € *
Price list
Quantity
Price per unit*
1 pcs.
2.2848 €
10 pcs.
2.0944 €
50 pcs.
1.9159 €
100 pcs.
1.7255 €
*incl. VAT plus shipping costs
Subject to prior sale

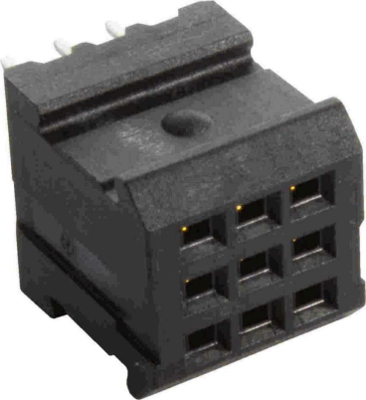

Female connector, 02529091101, Harting
The 02529091101 straight female connector is terminated using reflow soldering (THR) and wave soldering termination, made of Polyamide (PA) material in a black color. Number of contacts: 9.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | female connector | |
| contact surface | gold-plated | |
| Pin number | 9 pole | |
| Type of locking | Yes | |
| Connection plating | tin-plated | |
| Orientation | straight | |
| Contact type | socket | |
| Grid | 2.54 mm | |
| Number of rows | 3 | |
| Additional parts | equipped | |
| Connection | solder pin | |
| Rated current | 2 A | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | RO |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
