02519041201 | Harting
Male connector, 4 pole, pitch 5.08 mm, angled, black, 02519041201
Order No.: 42F9025
EAN: 5713140197923
MPN:
02519041201
har-modular F4-module male angled
Series: har-modular
Unit Price (€ / pc.)
1.4161 € *
Standard delivery time from the manufacturer is: 1 Week

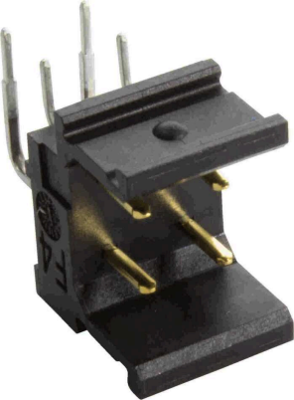

Male connector, 02519041201, Harting
The 02519041201 angled male connector is terminated using reflow soldering (THR) and wave soldering termination, made of Polyamide (PA) material in a black color. Number of contacts: 4.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 5.08 mm | |
| Pin number | 4 pole | |
| Colour | black | |
| Connection plating | tin-plated | |
| Contact type | pin | |
| Rated current | 6 A | |
| Version | male connector | |
| Connection | solder pin | |
| Additional parts | equipped | |
| Number of rows | 2 | |
| contact surface | gold-plated | |
| Orientation | angled | |
| Type of locking | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | RO |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
