21033812824 | Harting

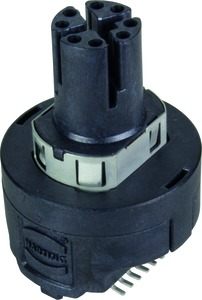

Socket, 8 pole, solder cup, screw locking, straight, 21033812824

Order No.: 45F5942
EAN: 4099889724943
MPN:
21033812824
21 03 381 2824
21033812824 Harting Other Circular Connectors
Image may differ
Unit Price (€ / pc.)
66.5329 € *
Standard delivery time from the manufacturer is: 27 Weeks
Total Price:
66.53 € *
Price list
Quantity
Price per unit*
1 pcs.
66.5329 €
10 pcs.
58.5599 €
50 pcs.
54.5615 €
100 pcs.
52.9788 €
*incl. VAT plus shipping costs
Subject to prior sale

Circular connector, 21033812824, Harting

The 21033812824 is a straight female PCB adapter with integrated transformer for front mounting.

Features

  • Brass
  • Reflow soldering termination (THR)
  • Liquid crystal polymer (LCP)
  • Power over Ethernet (PoE+)
  • Rated current: ‌0.8 A
Technical specifications
Filter Property Value
Pin number 8 pole
Orientation straight
Type of locking screw locking
Assembly front mounting
Contact connection solder cup
contact surface gold-plated
Version socket
Shell Material zinc die casting
Logistics
Property Value
Country of origin CN
Compliance
Property Value
RoHS conform Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
