21033812821 | Harting
Socket, 8 pole, solder cup, screw locking, straight, 21033812821
Order No.: 45F0009
EAN: 4099889724653
MPN:
21033812821
21 03 381 2821
Series: Circular connectors M12
Unit Price (€ / pck.)
1,221.5945 € *
Standard delivery time from the manufacturer is: 1 Week
Circular connector, 21033812821, Harting

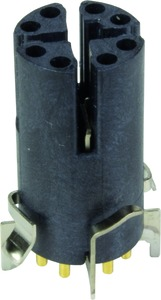

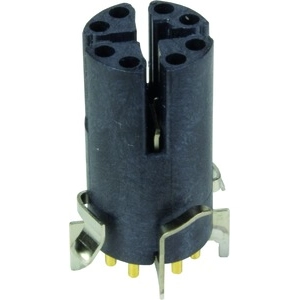

The 21033812821 is a straight female PCB adapter with 8 contacts.
Features
- Copper alloy
- Reflow soldering termination (THR)
- Liquid crystal polymer (LCP)
- Rated current: 0.5 A
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | solder cup | |
| contact surface | gold-plated | |
| Assembly | PCB mounting | |
| Shell Material | zinc die casting | |
| Orientation | straight | |
| Pin number | 8 pole | |
| Version | socket | |
| Type of locking | screw locking |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
