21033812814 | Harting
Socket, 8 pole, solder cup, screw locking, straight, 21033812814
Order No.: 45F0006
EAN: 4099889724639
MPN:
21033812814
21 03 381 2814
Series: Circular connectors M12
Unit Price (€ / pc.)
43.4469 € *
Standard delivery time from the manufacturer is: 14 Weeks
Total Price:
43.45 € *
Price list
Quantity
Price per unit*
1 pcs.
43.4469 €
10 pcs.
38.2228 €
50 pcs.
35.6167 €
100 pcs.
34.5933 €
250 pcs.
33.2843 €
*incl. VAT plus shipping costs
Subject to prior sale
Circular connector, 21033812814, Harting

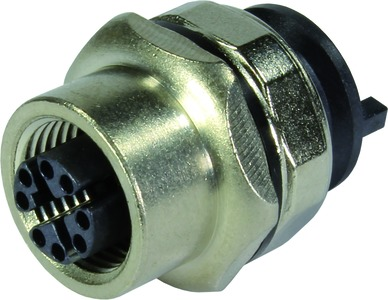

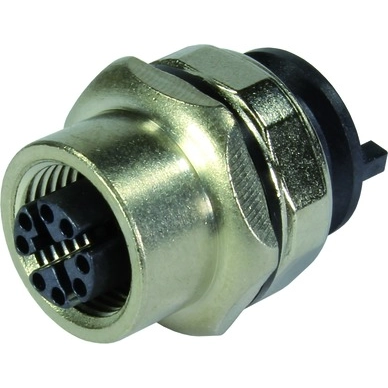

The 21033812814 is a straight female PCB adapter for front mounting.
Features
- Copper alloy
- Reflow soldering termination (THR)
- Liquid crystal polymer (LCP)
- Rated current: 0.5 A
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Orientation | straight | |
| Type of locking | screw locking | |
| Assembly | front mounting | |
| contact surface | gold-plated | |
| Version | socket | |
| Contact connection | solder cup | |
| Pin number | 8 pole | |
| Shell Material | zinc die casting |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389099 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead, 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol |
| Date of RoHS guidelines | 3/31/15 |
