21033812809 | Harting
Socket, 8 pole, solder cup, screw locking, straight, 21033812809
Order No.: 45F0001
EAN: 4099889724585
MPN:
21033812809
21 03 381 2809
Series: Circular connectors M12
Unit Price (€ / pc.)
20.3847 € *
Standard delivery time from the manufacturer is: 15 Weeks
Circular connector, 21033812809, Harting

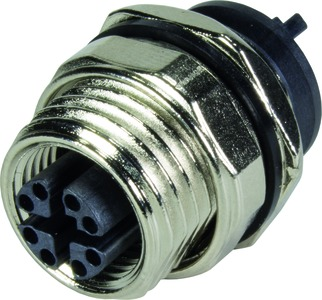

The 21033812809 is a straight female PCB adapter for rear mounting.
Features
- Copper alloy
- Reflow soldering termination (THR)
- Screw locking
- Liquid crystal polymer (LCP)
- Rated current: 0.5 A
Technical specifications
| Type of locking | screw locking | |
| contact surface | gold-plated | |
| Assembly | PCB mounting | |
| Contact connection | solder cup | |
| Pin number | 8 pole | |
| Version | socket | |
| Shell Material | zinc die casting | |
| Orientation | straight |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85389099 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead, 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol |
| SVHC free | No |
| RoHS conform | Yes |
